Description

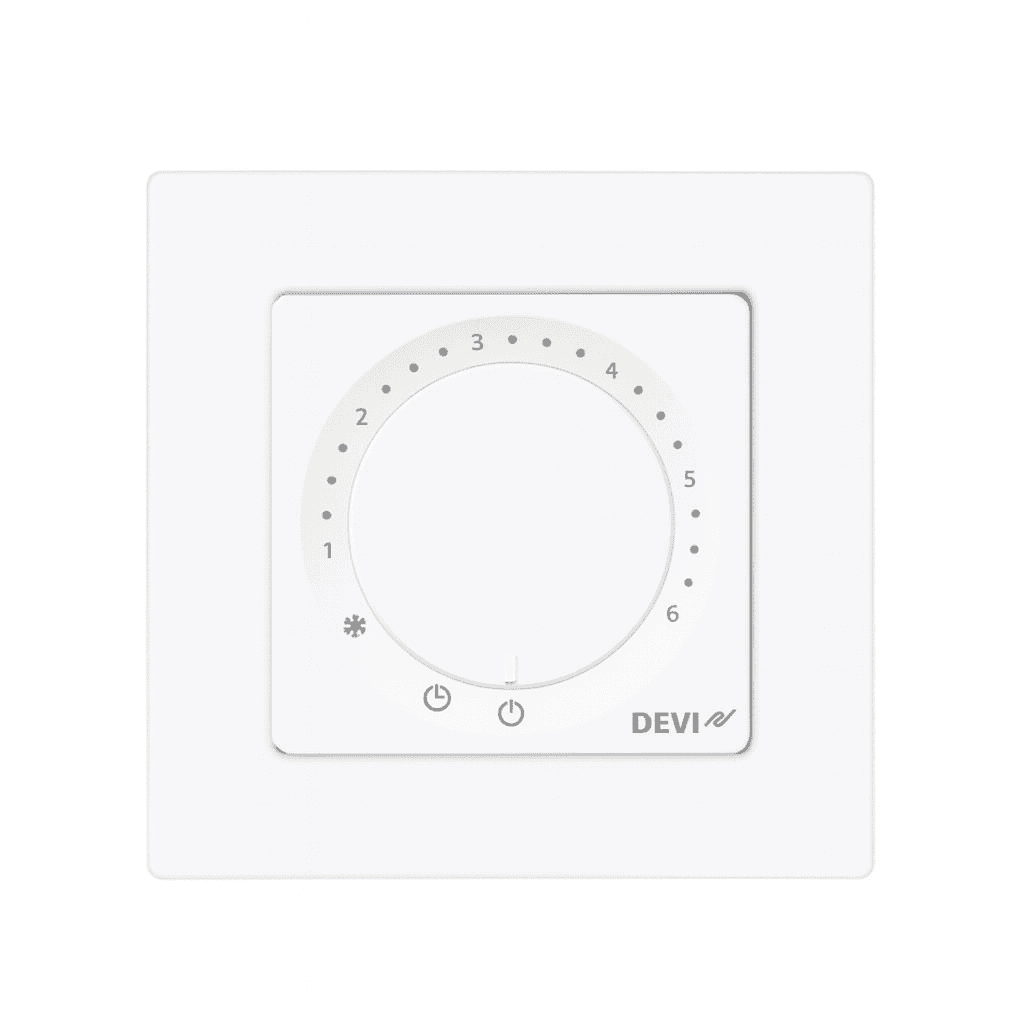

DEVIreg™ Basic Thermostat: Smart & Simple Control for Electric Floor Heating
Optimise your home’s warmth with the DEVIreg™ Basic programmable thermostat, an intelligent and user-friendly solution designed for precise control of electric underfloor heating systems. This advanced thermostat combines intuitive manual control with cutting-edge smart features, delivering superior comfort, significant energy efficiency, and seamless operation.
Key Features & Benefits:
- Precise Temperature Control: Easily set and maintain your desired room and floor temperatures with the intuitive dial, offering a range from 5°C to 35°C (expandable to 45°C with breakout).
- Eco-Design Lot 20 Compliant: Engineered to meet modern energy efficiency standards, the DEVIreg™ Basic helps reduce your energy consumption and lower heating costs, contributing to a more sustainable home.
- Smart Connectivity with Bluetooth: Configure and manage your heating system effortlessly using the multi-language DEVI Control mobile app. The in-app setup wizard guides you through the process, making installation and programming simple and fast.
- 7-Day, 3-Period Programmable Schedule: Tailor your heating to your lifestyle with flexible scheduling, ensuring optimal comfort when you need it most while maximising energy savings.
- Intelligent Pre-Heating (Optimum Start): The thermostat learns your heating patterns to activate your under tile heating precisely when needed, ensuring your desired temperature is reached at the programmed time without wasting energy.
- “Works Out of Box” Simplicity: Pre-configured with default settings, the DEVIreg™ Basic is ready for operation immediately after installation, minimising setup time.
- Seamless Integration: Designed to fit a wide range of standard 55mm x 55mm frames, ensuring a sleek and consistent aesthetic with your existing switches and outlets.
- Sensor Compatibility: Compatible with NTC 15 kΩ @ 25 °C (default 3m sensor included).
- Adaptive PWM Control: Provides precise temperature regulation for consistent comfort and outstanding energy efficiency.
- Sensor Failure Monitoring: Built-in safeguards alert you to any issues with the floor sensor, ensuring reliable and continuous operation for your electric floor heating.
- Frost Protection: Keep your floors safe from freezing with an adjustable frost protection feature (4°C – 14°C, default 5°C).
Easy Installation & Setup
The DEVIreg™ Basic features a clever 2-part construction for straightforward, fixed installation. Use the in-app setup wizard for a guided, multilingual configuration process that makes optimising your floor heating thermostat quick and hassle-free.
Technical Specifications:
- Nominal Voltage: 220 V- 240V~ 50/60 Hz
- Standby Power Consumption: 0.2 W
- Relay: 16A / 3680W @ 230V
- Compatible Sensors: NTC 15 kΩ @ 25 °C (3m sensor included)
- Regulation: PWM – Pulse Width Modulation
- Temperature Range (Floor): 5 °C to 35 °C (expandable to 45 °C with break out)
- IP Class: 21
- Dimensions (H/W/D): 85 mm x 85 mm x 20-24 mm (in-wall depth: 22mm)
- Warranty: 2 years
- Dimensions: 85 mm x 85 mm x 20-24 mm
Enhance your indoor climate control with the DEVIreg™ Basic thermostat – the smart, efficient choice for modern electric underfloor heating.
